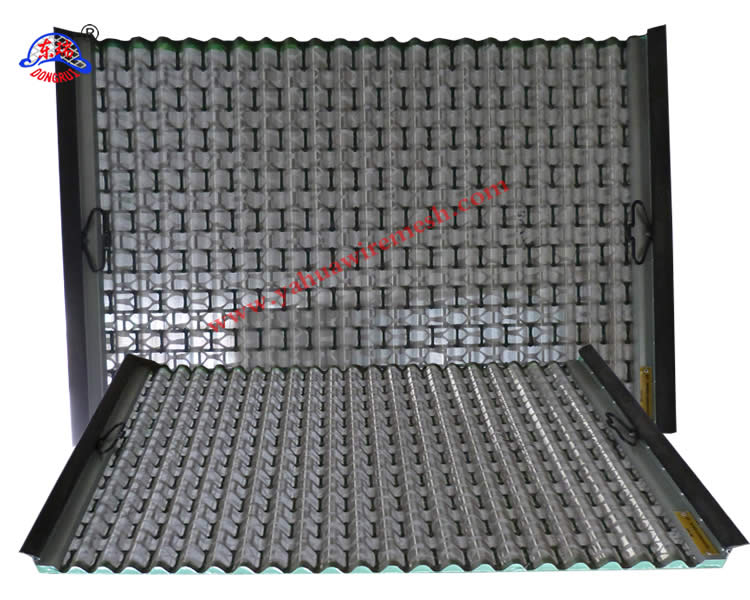

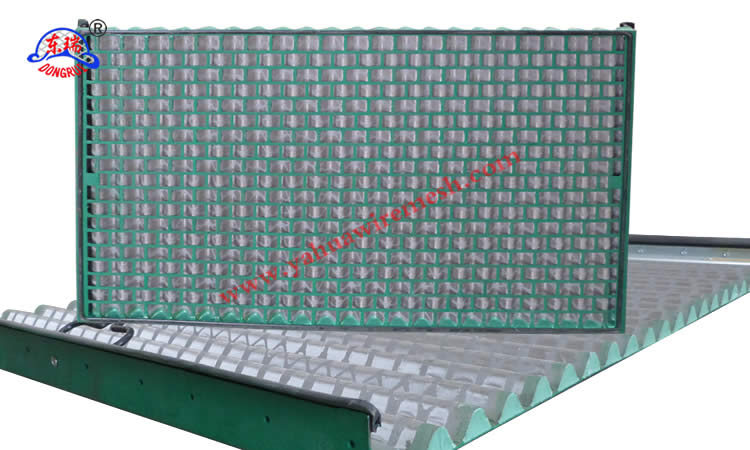

FLC 500 PMD Shale Shaker Screen
FLC500 PMD Shaker Screen is used to Yahua 503 Shale Shaker.500 PMD Shaker Screen is popular in Saudi Arabia.
Different layers with different density.To arrange these layers reasonably and exactly, the screening effect will become more and better. Screen with different mesh counts with suitable opening sizes of the backing plate. Doing so, our products will obtain the largest effective area under the condition of enough strength.
The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased.
Advantages of FLC500 PMD Shaker Screen
1. Wear-resisting
2. long service life
3. Higher flow rate
4. Easy disassembly
5. Trapping (dreg) effect is good
6. Technical expertise
7.Material: SS304 / SS316L
Technical Parameters Of FLC500 PMD Shaker Screen
Model | Brand&Model for shaker | Mesh Range | Dimension (Length x Width) | Weight |
SJZ-6 | Yahua FLC500 Series PMD | 20—325 | 1050×697mm | 7.8KGS |
