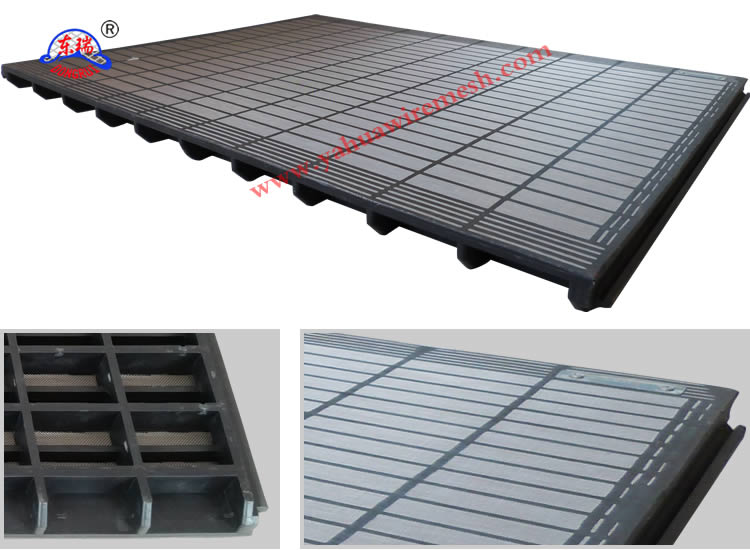

VSM-300 Shale Shaker Screen
Shaker Screen is very important for Mud Shale Shaker,Because shaker screen is easy to break the parts.The effect of separation is affected by the screen.VSM300 Shaker screen for Brandt VSM300 Shale Shaker.
Brandt VSM300 Shale Shaker Screen main feature as follows:
1) These VSM300 shaker screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together .Because of different mesh size and hole size ,get a better filtering effect.
2) The bottom high strength steel frame ,supporting bar with the moderate tension screen cloth ,combined together ,infinitely enhance the screen intensity and endurance ,get a better filtering effective .Mesh sizes ranging from 20 to 325 .The whole cloth is divided into independent small surfaces ,prevent the part exceessive expansion damaged .With a special rubber plug together to repair damage,save the time to replace the screen ,increase the effciency and reduce the cost.
Feature Advantage:
Corrosion-resisting, heat-resisting, wear-resisting.
Long working life, higher flow rate.
Easy disassembly, rating of temperature, good performance.
Conductivity (powder) liquid, trapping (dreg) effect is good.
Current design, technical expertise.
Competitive Advantage:
Effective Filtering Area.
Long Service Life.
Model | Brand&Model for shaker | Mesh Range | Dimension (Length x Width) | Weight |
SJZ-11 | Brandt VSM300 | 40—325 | 913×650mm | 12.6KGS |
